⊙ C5 Computer Control

* C5 Computer Control System

• Intuitive user interface is completely customizable
• Interface is expandable to 16 closed-loop and 64 open-loop ontrol channels
• Ability to accept additional analog or digital inputs
• Real-time digital and graphical display of all control parameters
• Data for user selected period up to 24 hours displayed for each closed-loop control channel
• Real-time, 24 hour programming for all channels
• Automatic data logging of all control parameters
• Built-in security features for control over chamber functions
• Relative and absolute alarms
• Local and remote chamber diagnostics
• Optional ControlNet central control & monitoring system allows remote control and data collection

EGC’s C5 Control System offers distributed environmental control technology with an intuitive user interface. We have combined the best in microprocessor based PID control technology for tight control of the environment with an interactive graphical display which is easy to learn, easy to use and informative. This integrated control system provides flexibility, expandability and the ability for future upgrades in software and hardware.
The core components of this system are the User Interface and the Chamber Interface.

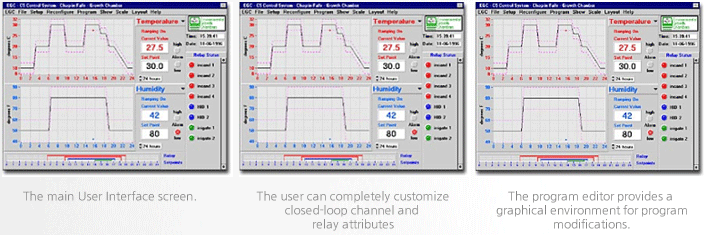

The User Interface is the gateway between the operator and the Chamber Interface. It has been designed by scientists for use by scientists. The most important and visible part of the User Interface is the display which provides a graphical representation of the chamber’s current condition and history.
This display allows for easy and rapid verification of current setpoints and actual values.
Changes in operating conditions are entered via the User Interface’s touch-sensitive screen or by using an optional mouse and keyboard. The symbols, icons and pull-down menus on all of the screens have been designed to be simple to use and easy to recognize.

The Chamber Interface is the component which continually manages the operation of the controlled environment. This unit is responsible for sending control signals to refrigeration valves, energizing relays to turn on lighting or irrigation circuits and controlling any other processes for which it has been configured. Even if the User Interface is disconnected the Chamber Interface will continue to operate on its own.

The C5 Control System also brings a new level of expandability to the controlled environment market. This platform offers several advantages to the end user, including support for third-party sensors, data acquisition, and control boards. It also offers the ability to control multiple chambers through a single User Interface utilizing its distributed control capability. When combined with our optional ControlNet software, this system offers the user complete centralized control and reporting for their entire laboratory.
