Plant Growth Chambers
홈 > 기후제어 > Plant Growth Chambers
⊙ M Series Precision
* M Series는 가장 까다로운 어플리케이션에서 최적의 성능과 가치를 위해 설계된 정밀 연구 Chamber이다.
이 제품은 성장 영역에 걸쳐 실험 변수의 최적의 균일성을 제공하는 것 뿐 아니라 심지어 식물 전체의 하중까지도 제공하는 것을 보장한다.
이것은 엄격한 실험 변수의 효과를 분리 제어하고, 높은 Chamber 활용의 경제적 효과를 얻는 것을 의미한다.
이러한 성능은 수년간의 엔지니어링 정제와 EGC사의 고급 성능기능의 독특한 조합에서 온다.
- Microprocessor control (마이크로 프로세서 제어)
- Aspirated sensor element modules (흡기 센서 소자 모듈)
- Two phase direct expansion refrigeration system (2상 직접확장 냉각 시스템)
- Specular interiors (스페큘러 인테리어)
- Barriered light caps
- Aspirated sensor element modules (흡기 센서 소자 모듈)
- Two phase direct expansion refrigeration system (2상 직접확장 냉각 시스템)
- Specular interiors (스페큘러 인테리어)
- Barriered light caps
* 또한 M Series Chamber는 4℃에서 40℃의 작동범위에서 설정값의 ±0.5℃내의 챔버 온도 균일성을 제공한다.
* 조명은 선택할 수 있는 HID 기구를 이용하여 fluorescent/incandescent 배열 범위 내에서 최대 500μmoles 구현할 수 있다.
The M series are precision research chambers, designed for optimum performance and value in the most demanding applications. They are guaranteed to provide optimum uniformity throughout the growing area, even with a full plant load. This means you get tighter control for isolating the effects of experiment variables, plus the economy of higher chamber utilization.
This performance comes from years of engineering refinement and the unique combination of EGC premium performance features, including:
▪ Microprocessor control
▪ Aspirated sensor element modules
▪ Two phase direct expansion refrigeration system
▪ Specular interiors
▪ Barriered light caps
M series chambers will provide chamber temperature uniformity within ±0.5°C of setpoint throughout the operating range of 4°C to 40°C. Lighting ranges from 500 µmoles (at 36" from lamps) with the standard fluorescent/ incandescent array up to full sunlight brilliance with optional HID fixtures.
M series plant growth chambers come in a variety of standard sizes. Reach-in units are available in three standard sizes with up to 28 ft2 of growing area. Walk-in units come in sizes up to 120 ft2. Special size walk-in rooms can be designed to meet your particular requirements.
This performance comes from years of engineering refinement and the unique combination of EGC premium performance features, including:
▪ Microprocessor control
▪ Aspirated sensor element modules
▪ Two phase direct expansion refrigeration system
▪ Specular interiors
▪ Barriered light caps
M series chambers will provide chamber temperature uniformity within ±0.5°C of setpoint throughout the operating range of 4°C to 40°C. Lighting ranges from 500 µmoles (at 36" from lamps) with the standard fluorescent/ incandescent array up to full sunlight brilliance with optional HID fixtures.
M series plant growth chambers come in a variety of standard sizes. Reach-in units are available in three standard sizes with up to 28 ft2 of growing area. Walk-in units come in sizes up to 120 ft2. Special size walk-in rooms can be designed to meet your particular requirements.
The Reach-Ins
| M12 | M18 | M28 | ||
|---|---|---|---|---|
| Growing Area | 12ft2 | 18ft2 | 28ft2 |  |
| Growing Height | 48" | 48" | 60" | |
| Evaporator Coils | 1 | 1 | 2 | |
| Access Door Size | 24"x36" | 22"x35" | 2-24"x36" | |
| Exterior Dimensions | 60"x40" | 84"x40" | 102"x60" | |
| Overall Height | 108" | 102" | 96" |

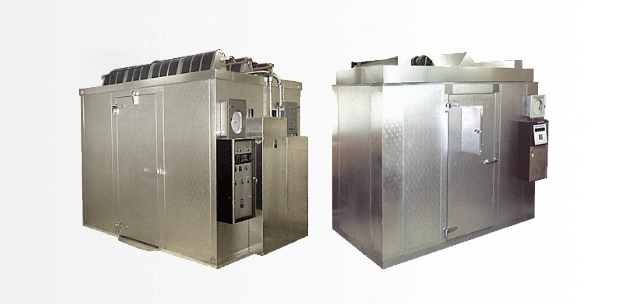

The Walk-Ins
| M36 | M36 | M75 | M96 | M120 | |
|---|---|---|---|---|---|
| Growing Area | 36ft2 | 36ft2 | 75ft2 | 96ft2 | 120ft2 |
| Growing Height | 84" | 84" | 84" | 84" | 84" |
| Evaporator Coils | 2 | 2 | 2 | 4 | 6 |
| Access Door Size | 38" x 76" | 38" x 76" | 38" x 76" | 38" x 76" | 38" x 76" |
| Exterior Dimensions | 9'11" x 5'4" | 9'11" x 5'4" | 9'11" x 10'2" | 9'11" x 12'11" | 9'11" x 15'11" |
| Overall Height | 104" | 104" | 104" | 104" | 104" |
